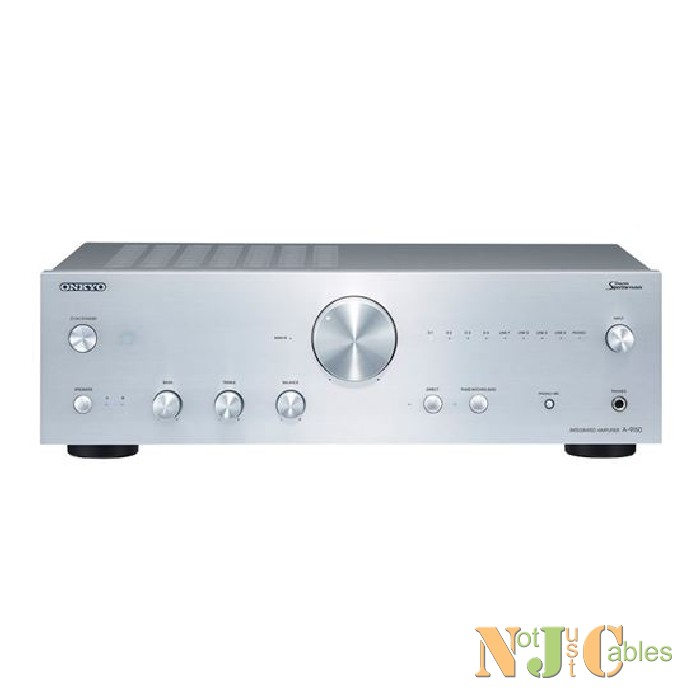

ONKYO Integrated Stereo Amplifier. High current power supply. Refined power amplification circuit with discrete SpectraModule. Hi-grade DAC and DIDRC filter. Robust flat chassis. Colour Silver

FEATURES:

Advanced

• 60W/Ch (4?, 20Hz~20kHz, 0.08% THD, 2 Channels Driven, IEC)
• Discrete SpectraModule Produces High Instantaneous Voltage for Immersive Soundstaging, Improved Instrument Separation and Lively Transient Response
• DIDRC Filter Prevents Ultra-high-frequency Distortion Affecting Audible Sound
• High-Current Power Supply Transformer and Two Hi-Grade Customised Capacitors
• High-Current Low-Impedance Drive for Enhanced Speaker Control
• Optimum Gain Volume Control Circuitry Isolates Signal from Noise Floor to Prevent Distortion at Lower Volume
• Symmetrical L/R Channel Layout with Equal Signal-path Lengths to Minimise Stereo Playback Errors
• Isolated Processing, Pre-amplification, and Power Amplification Circuitry Reduces Electrical Interference on Audio Signal
• Large Extruded Aluminium Heat Sink
• AKM (AK4452) 768kHz/32-bit Digital-to-Analogue Converter
• Direct Mode for Reproduction Faithful to Original Source
• Front-panel A/B Speaker Drive Selector
• Available in Black or Silver Finish

Inputs and Connections

• 4x Gold-plated Analogue RCA Audio Inputs (Rear)
• 2x Gold-plated Coaxial Digital Audio Inputs (192kHz/24-bit Capable)
• 2x Pairs of Gold-plated Speaker Posts (A+B)
• Gold-plated Phono Input (MM/MC) to Suit Any Turntable
• 6.3mm Headphone Jack
• Gold-plated Main Input
• Gold-plated Pre Out
• RI (Remote Interactive) Remote Control Input

Additional

• Tone Controls (Bass/Treble/Balance)
• Aluminum Front Panel and Aluminium Volume Control Knob
• Rigid Steel Chassis to Reduce Resonance
• Stable Isolator Feet Minimize Vibration-borne Interference
• Efficient 0.2W Power Consumption on Standby
• Full-sized and Full-function RI Remote Control
